Home > Products > Plus current series1, product model: AFLX-1500
2, flexible anode diameter: 35mm
3, conductive polymer diameter: 13.2 ± 0.5 mm
4, the standard weight: 1.49kg / m
5, laying depth (tank bottom): 500 mm or more
6, laying distance (buried pipeline: from the outer wall of the pipe 1-3D
7, the activated carbon consumption rate: 1 Kg / A-year
8, the maximum output current density: 52 mA / m

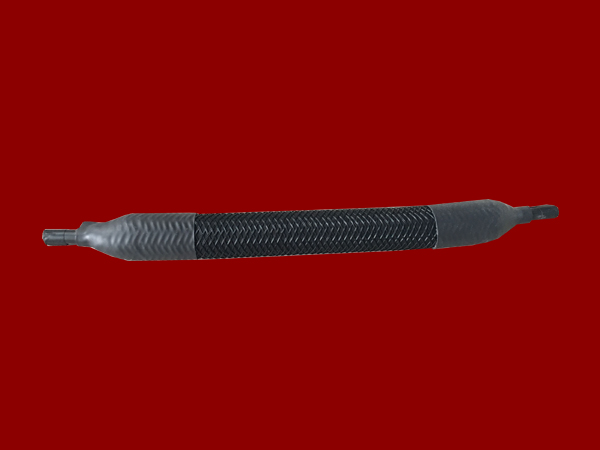

MMO type flexible anode (GDHCTECH MA 52mA / 1 × 10) technical specifications
1. Flexible anode structure
2. Rated operating current: 52mA / m;
3. Design life: ≥ 25 years
4. Flexible anode basic dimensions
Finished diameter: Φ38.0mm ± 2.0mm
5. anode body
Internal cable: Structure: 1 × 10mm2
Copper wire DC resistance:
GB / T 3048-2007 "Wire and cable point performance test method", ≤ 1.95Ω / km
MMO wire: diameter: Φ1.0mm
Substrate: ASTM B863-2010 "Titanium and Titanium Alloy Wire Standard": Grade 1 Titanium
Coating thickness: ASTM B568-2009 "X-ray spectroscopy analysis of coating thickness", ≥ 6 g / m2
6. Toner:
Fixed carbon content:
GB2001-91 "coke industry analysis and determination method", ≥ 98.0%
Granularity:
YS / T587.12-2006 "Method for the determination of petroleum coke after calcination for carbon anodes - Part 12: Determination of particle size distribution", 0.1 mm - 1.0 mm
Volume resistivity:
GB / T24521-2009 "Coke resistivity test method", ≤0.05Ω.m.
7. Wrap the cloth cover
Breaking strength:
ISO 3303-1990 "Rubber- or plastics- coated fabrics -Determination of bursting tength", ≥ 500N
Quality per unit area:
GB / T 4669-2008 "Determination of unit length and mass per unit area of woven fabrics", ≥ 210 g / m2
Number of wear (0.600 water sandpaper):
GB / T21196-2007 "Determination of abrasion resistance of textiles Martindale fabrics - Part 2: Determination of breakage of specimens", ≥100 times
Puncture resistance
ASTM D4833-2007 "geotextile, plastic film and its related products, anti-piercing index of the standard test method", ≥ 28kg
8. Outer woven filaments
Linear density:
GB / T 14343-2008 "Chemical fiber filament yarn density test method", ≥ 2000.0 dtex
